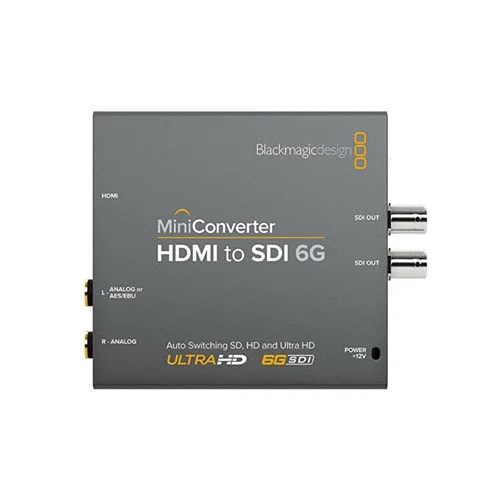

Description Key Features 4K HDMI Input 2 x 6G-SDI Outputs Supports SD, HD, UHD 4K & DCI 4K Signals Automatic Input Signal Detection 24-Bit, 48 kHz Audio Analog & AES-EBU Digital Audio Inputs Embeds Audio Into SDI Output Settings via Mini Switches or Software USB 2.0 Port for Firmware Updates 12V Universal Power Supply Included Blackmagic Design CONVMBHS Specs Video Input 1 x HDMI, Type A Video Output 2 x 6G-SDI Multi-Rate Support Auto detection of SD, HD, 3G, or 6G-SDI signals Reclocking Yes Audio Input Analog: 2 channels with 1 x 1/4″ jack per channel AES/EBU: 4 channels with 1 x 1/4″ jack Format Support DCI 4K 24pUHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 SDI Compliance SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601 SDI Video Rates Switchable between SD, HD, Ultra HD and DCI 4K SDI Video Sampling 4:2:2 SDI Color Precision 4:2:2 SDI Color Space YUV SDI Audio Sampling 24-bit, 48 kHz SDI Auto Switching Automatically detects SD, HD, or 6G-SDI HDMI Format Support UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 HDMI Color Space YUV and RGB HDMI Color Precision 4:2:2 4:4:4 HDCP Compliance No. HDMI input is unable to capture from copy-protected HDMI sources Format Conversion HD down-conversion Settings Control Mini switches or USB software Firmware Upgradeable Via USB Power Supply 12 VDC Power Consumption 4.44 W Operational Voltage Range 12 to 31 VDC Operating Temperature 32 to 104°F / 0 to 40 °C Storage Temperature -4 to 113°F / -20 to 45 °C Relative Humidity 0 to 90% non-condensing Dimensions 4.49 x 3.63 x 0.90″ / 11.40 x 9.22 x 2.29 cm Weight 8.6 oz / 243.8 g
