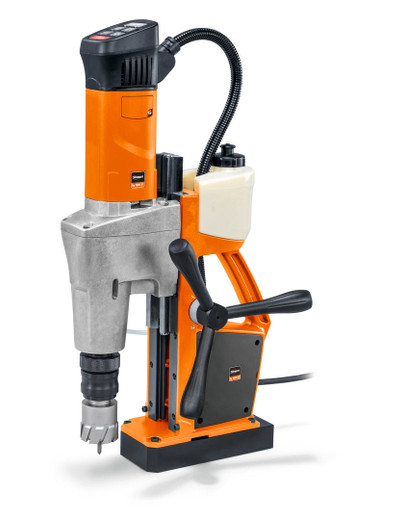

Description DETAILS Compact with high functionality for universal use on the construction site and in the workshop. Simple and error-proof control concept in the operator’s field of view. Double drill motor guides enable use of the longest annular cutters. Reversible Electronic speed control. High-power motor with stable speed. High magnetic holding force. Easy to read convenient magnetic holding force display. Integrated coolant tank. Hand feed wheel can be mounted on either side. MT3 interface. TECHNICAL DATA TECHNICAL DATA Power consumption 1,200 W Power output 610 W Load speed: 1st gear 130 – 260 rpm Load speed: 2nd gear 260 – 520 rpm Tool mount MT 3 Carbide cutter max. dia. 2 [50] in[mm] HSS cutter max. dia. 1-5/8 [40] in[mm] Cutter max. drilling depth 2 [50] in[mm] Twist drill max. dia. 7/8 [23] in[mm] Tapping M 16 Max. countersinking dia. 2 [50] in[mm] Reaming max. dia. 7/8 [23] in[mm] Cutter holder 3/4″ straight shank Cutter change tool-free Stroke 5-11/16 [145] in[mm] Total stroke range 12-3/8 [315] in[mm] Cable with plug 13 [4] ft[m] VIBRATION AND SOUND EMISSION VALUES Sound pressure level LpA 82,1 dB Measurement uncertainty of the measured value KpA 5 dB Sound power level LWA 93,1 dB Measurement uncertainty of the measured value KWA 5 dB Peak sound value LpCpeak 96,2 dB Measurement uncertainty of the measured va
