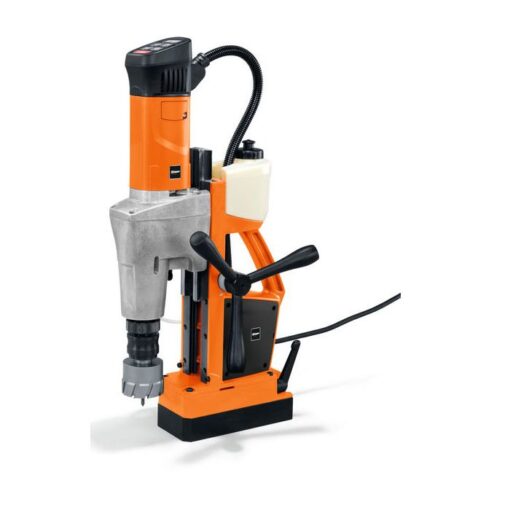

Description DETAILS Stable speed, even in the toughest applications. Fine drill spindle adjustment for convenient machine alignment. Double drill motor guides enable use of the longest annular cutters. Reversible Electronic speed control. MT3 interface. High magnetic holding force. Easy to read convenient magnetic holding force display. Integrated coolant tank. TECHNICAL DATA TECHNICAL DATA Power consumption 1,300 W Power output 730 W Load speed: 1st gear 120 – 240 rpm Load speed: 2nd gear 260 – 520 rpm Tool mount MT 3 Carbide cutter max. dia. 2-1/2 [65] in[mm] HSS cutter max. dia. 1-3/4 [45] in[mm] Cutter max. drilling depth 2 [50] in[mm] Twist drill max. dia. 1 [25] in[mm] Tapping M 20 Max. countersinking dia. 2 [50] in[mm] Reaming max. dia. 1 [25] in[mm] Cutter holder 3/4″ straight shank Cutter change tool-free Stroke 5-11/16 [145] in[mm] Total stroke range 12-3/8 [315] in[mm] Drill stand adjustment range 1/4 [6] in[mm] Drill stand angular adjustment 7° Cable with plug 13 [4] ft[m] VIBRATION AND SOUND EMISSION VALUES Sound pressure level LpA 81,6 dB Measurement uncertainty of the measured value KpA 5 dB Sound power level LWA 92,6 dB Measurement uncertainty of the measured value KWA 5 dB Peak sound value LpCpeak 95,2 dB Measurement uncertainty of the measured
