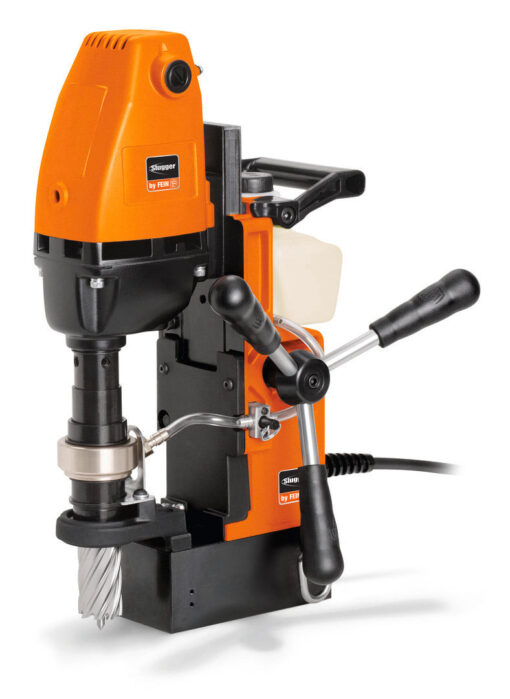

Description DETAILS Uniform-torque motor for demanding core drilling. High concentricity and positive slug ejection due to special bore spindle guides. Solid, massive construction in die-cast aluminum for work under difficult conditions. Integrated coolant tank. Internal motor cable routing. Accessory handle for easy carrying of tool. Hand feed wheel can be mounted on either side. Smart magnet circuitry will not allow motor to start without sufficient magnetic force. TECHNICAL DATA Power consumption 1,050 W Power output 530 W Full load speed 330 rpm No load speed 480 m/min HSS cutter max. dia. 1-1/2 [38] in[mm] Cutter max. drilling depth 2 [50] in[mm] Twist drill max. dia. 1/2 [12] in[mm] Cutter holder 3/4″ straight shank Stroke 2-9/16 [65] in[mm] Magnetic holding force 2023 [9,000] lbs[N] Cable with plug 13 [3.8] ft[m] Weight 31.75 lbs
