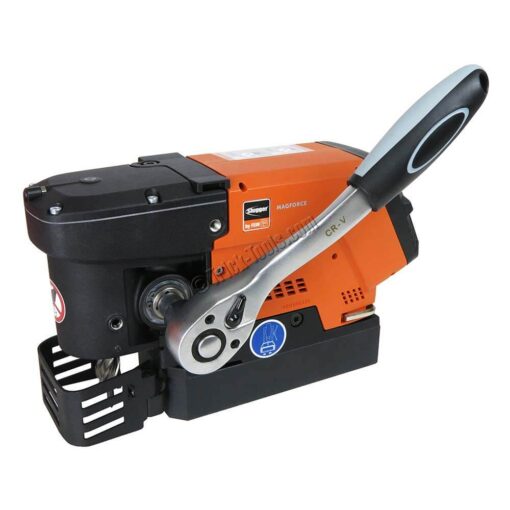

Description DETAILS Powerful, maintenance-free 10 A [1,200 W] HighPerformance brushless motor. Take on any drilling application with its variable speed and forward/reverse operation. Ratcheting handle allows you to work in even the tightest spaces. German-engineered to be extremely durable, wear-resistant for drilling in tough applications. Workplace Safety: Tilt sensor safety shutoff will shut down the drill in the event it should move or break free from the workpiece. Intuitive operator controls located on the top of the drill motor for maximum visibility. High gear level for clear view of the hole location. Large installation space below the drill spindle with a stroke of 1-13/16 [46] in[mm]. Drive shaft combined 1/2 in square and 8 mm hexagonal socket. Integrated handle. “Memory function” speed storage. Storage for 5 mm Allen key directly on the tool. Inner cooling lubrication with included hand pump. Perfectly equipped for any job. Easily transported with our L-BOXX system. TECHNICAL DATA TECHNICAL DATA Power consumption 1,200 W Power output 680 W Full load speed 130 – 610 rpm No load speed 130 – 660 m/min Carbide cutter max. dia. 1-3/8 [35] in[mm] HSS cutter max. dia. 1-3/8 [35] in[mm] Cutter max. drilling depth 1-3/8 [35] in[mm] Twist drill max. dia. 9/16 [14] in[mm] in[mm] Tapping 3/8″ (M10) Max. countersinking dia. 1-1/4 [32] in[mm] Reaming max. dia. in[mm] Cutter holder 3/4″ straight shank Stroke 1-13/16 [46] in[mm] Minimum clearance 40 mm Construction height 6-5/8″ [169] in[mm] Length 11-7/16″ [290] in[mm] Magnetic holding force 2248 [10,000] lbs[N] Cable with plug 10 [3] ft[m] Weight 18.74 lbs VIBRATION AND SOUND EMISSION VALUES Sound pressure level LpA 95,3 dB Measurement uncertainty of the measured value KpA 5 dB Sound power level LWA 103,3 dB Measurement uncertainty of the measured value KWA 5 dB Peak sound value LpCpeak 106,3 dB Measurement uncertainty of the measured value KpCpeak 5 dB Vibration value 1 αhv 3-way ah,D = <2,5 m/s² Measurement uncertainty of the measured value
