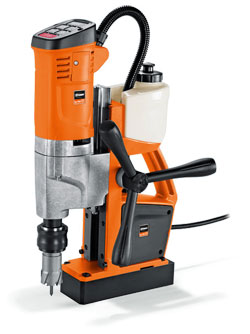

Description DETAILS Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades. Extremely resilient design due to solid machine construction with pivoting motor cable protection sleeve. Designed for heavy use in trade and industry. Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1 100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation. Small, with mechanic 2-gearbox for twist drilling. Simple and error-proof control concept in the operator’s field of view. Easy to read convenient magnetic holding force display. High magnetic holding force. Motion sensor. Additional magnet switch in the drill stand. Integrated coolant tank. Hand feed wheel can be mounted on either side. “Memory function” speed storage. TECHNICAL DATA TECHNICAL DATA Power consumption 1,100 W Power output 550 W Load speed: 1st gear 130 – 520 rpm Load speed: 2nd gear 400 – 1,600 rpm Carbide cutter max. dia. 1-3/8 [35] in[mm] HSS cutter max. dia. 1-3/8 [35] in[mm] Cutter max. drilling depth 2 [50] in[mm] Twist drill max. dia. 5/8 [16] in[mm] Tapping M 14 Max. countersinking dia. 1-1/4 [31] in[mm] Reaming max. dia. 5/8 [16] in[mm] Cutter holder 3/4″ straight shank Cutter change tool-free Stroke 5-5/16 [135] in[mm] Total stroke range 10-1/4 [260] in[mm] Cable with plug 13 [4] ft[m] VIBRATION AND SOUND EMISSION VALUES Sound pressure level LpA 83,2 dB Measurement uncertainty of the measured value KpA 5 dB Sound power level LWA 94,2 dB Measurement uncertainty of the measured value KWA 5 dB Peak sound value LpCpeak 96,8 dB Measurement uncertainty of the measured value KpCpeak 5 dB Vibration value 1 αhv 3-way αh,D <2,5 m/s² Measurement uncertainty of the measured va
