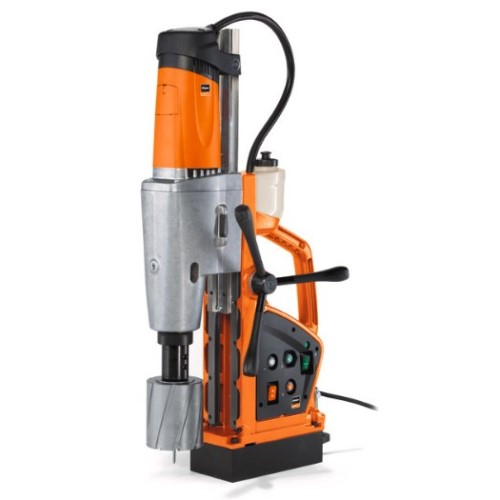

Description DETAILS FEIN 1,700 W high-performance motor with high torque for heavy drilling work. For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve. Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming. Mechanical 4-speed gearbox. High magnetic holding force. Torque arm for increased magnetic holding power. Motion sensor. Torque slip clutch. Easy to read convenient magnetic holding force display. Electronic speed setting. Reversible. MT4 tool mounting. Integrated coolant tank. Includes Portable Residual Current Device (PRCD) safety switch. TECHNICAL DATA TECHNICAL DATA Power consumption 1,700 W Power output 850 W Load speed: 1st gear 60 / 120 rpm Load speed: 2nd gear 90 / 170 rpm Load speed: 3rd gear 150 / 300 rpm Load speed: 4th gear 230 / 430 rpm No-load speed: 1st gear 100 / 190 rpm No-load speed: 2nd gear 160 / 290 rpm No-load speed: 3rd gear 270 / 500 rpm No-load speed: 4th gear 420 / 750 rpm Tool mount MT 4 Carbide cutter max. dia. 4 [101] in[mm] HSS cutter max. dia. 3 [75] in[mm] Cutter max. drilling depth 4 [101] in[mm] Twist drill max. dia. 1-3/8 [35] in[mm] Tapping M 36 Max. countersinking dia. 2-3/8 [60] in[mm] Reaming max. dia. 1-3/8 [35] in[mm] Cutter holder Weldon 32 Stroke 11 [280] in[mm] Total stroke range 15-3/4 [400] in[mm] Magnetic holding force 5171 [23,000] lbs[N] Cable with plug 13 [4] ft[m] Weight 79.37 lbs VIBRATION AND SOUND EMISSION VALUES Sound pressure level LpA 86,0 dB Measurement uncertainty of the measured value KpA 5 dB Sound power level LWA 97,0 dB Measurement uncertainty of the measured value KWA 5 dB Peak sound value LpCpeak 98,5 dB Measurement uncertainty of the measured value KpCpeak 5 dB Vibration value 1 αhv 3-way ah,D = 1,4 m/s² Measurement uncertainty of the measured value Kα
