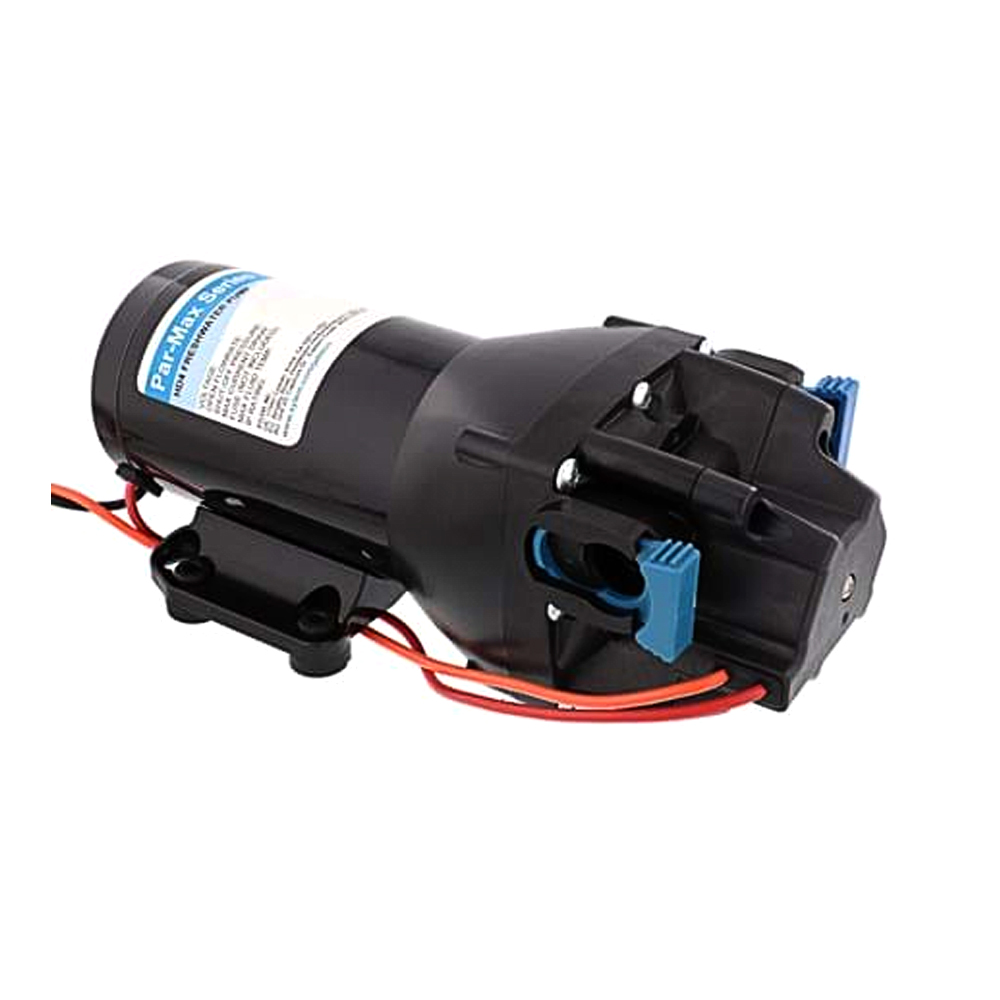

Description The Jabsco Xylem Par-Max HD4 24V DC freshwater delivery pump features a wide diameter motor (compared to non-HD models) with a powder-coated shell, cast aluminium endbells and lower housing to improve pressure capability and life. The pump delivers exceptional performance and has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve four or more outlets. Pump features include vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. The pump is supplied with two 1/2” quick connect straight hosebarb fittings and a quick connect inline 40 mesh strainer. • Voltage: 24V DC • Open flow GPM (LPM): 4 (15) • Shut-off pressure PSI (BAR): 25 (1.7) EU only • Max. current AMPS: 4.0 • Recommended fuse size: 10 • Port fittings: 2 x 1/2″ Straight Hosebarb • Dimensions: 9.4” in length, 4.1” in width, 3.8” in height / 239(L) x 104(W) x 97(H)mm
