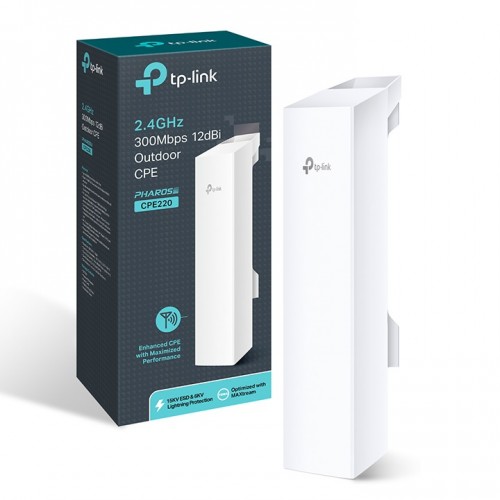

TP-Link CPE220 2.4GHz 300Mbps High Power Outdoor Wireless Access Point

Specification Main Feature Antenna Built-in 12dBi 2×2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet Button Remote Reset Button CPU Qualcomm Atheros 560MHz CPU, MIPS 74Kc Ram 64MB DDR2 RAM, 8MB Flash Temperature Operating Temperature: -40°C~70°C (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing Dimensions 85.8×43.9×31.9 mm Power PoE in 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) PoE in input Voltage 100-240VAC, 50/60Hz Power consumption 10.5 Watts Max Network Wireless Rate Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Wireless frequency 2.4~2.483GHz Wireless standards IEEE 802.11b/g/n (with Pharos MAXtream disabled) Ethernet 1x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1x 10/100Mbps Shielded Ethernet Port (LAN1) Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption Others Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog Manufacture Warranty Warranty 01 Year Warranty
