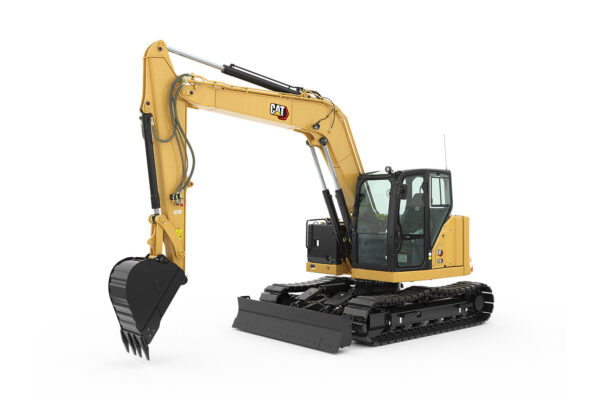

Mini Excavators 310 – Tier 4 / Stage V

Caterpillar · Mini Excavator · Next Generation 31010-Tonne Class · Tier 4 Final / EU Stage V · Top of the Cat Mini Range Maximum power and performance in a mini size. The largest and most capable Cat next generation mini excavator — delivering the highest bucket force, deepest dig depth and greatest reach in the Cat compact excavator lineup. ▶ Next Generation · C3.3B · 17,459 lbf Bucket · 205.2″ Deep · 303″ Reach 69.5 hp Net Power 23,002 lb Max Op. Weight 205.2“ Dig Depth ★ Range Max 303“ Max Reach ★ Range Max 17,459 lbf Bucket Force ★ Range Max 62 gpm Pump Flow 4,134 psi System Pressure 310 vs 309 CR ★ Deepest dig in Cat mini range: 205.2″ ( 22.4″ vs 309 CR) ★ Highest bucket force: 17,459 lbf ( 25% vs 309 CR) ★ Greatest max reach: 303″ ( 2.3″ vs 309 CR) Stick digging force: 11,060 lbf (vs 9,500 lbf) Extra counterweight option: 1,103 lb (new) Longer stick: 98.4″ standard (vs 71.8″ std on 309 CR) Hydraulic system: 37 gal (vs 29 gal) No high flow circuit (309 CR exclusive feature) Key Benefits & Features ★ Range-Topping Dig Depth — 205.2″ At 205.2″ (17 ft 1″), the Cat 310 achieves the deepest excavation depth of any Cat next generation compact mini. Enables deep utility trenching, sewer work, drainage infrastructure and foundation projects that smaller machines simply cannot reach. ★ Highest Bucket Force — 17,459 lbf 17,459 lbf bucket digging force — the most powerful bucket breakout in the Cat mini excavator lineup. Combined with 11,060 lbf stick digging force, the 310 breaks through compacted clay, hardpan and light rock conditions with authority. All Day Comfort — Cab Standard Sealed, pressurised cab with improved air conditioning, adjustable wrist rests and suspension seat standard on every 310. No canopy option on the top-of-range model. Dual Counterweight Options Standard counterweight ( 551 lb) and extra counterweight ( 1,103 lb) options give operators the ability to configure stability for heavy lifting applications — unique to the 310 in the Cat compact mini range. 303″ Maximum Reach Over 25 feet of reach from the long stick — the greatest reach envelope of any Cat next generation compact mini excavator — for wide-span drainage, embankment work and material placement across large areas. 62 GPM High-Capacity Hydraulics 62 gpm load-sensing pump flow with dual auxiliary circuits (35 gpm primary 9 gpm secondary) at 4,134 psi — delivering full attachment performance for hammers, tilting buckets, thumbs and other demanding tools. Customisable Operator Settings Programmable performance modes tune machine response across all functions — delivering up to 20% more performance versus previous generation Cat mini models. Lower Owning & Operating Costs Improved fuel efficiency, extended service intervals, load-sensing variable displacement hydraulics and ground-level side-door maintenance access reduce total ownership costs by up to 10%. What’s Included Cat C3.3B Turbo engine — 69.5 hp / Tier 4 Final & EU Stage V Load-sensing hydraulics — variable displacement piston pump, 62 gpm 4,134 psi equipment & travel operating pressure 3,336 psi swing operating pressure Auxiliary Primary circuit — 35 gpm @ 4,134 psi Auxiliary Secondary circuit — 9 gpm @ 4,134 psi One-way, two-way and continuous auxiliary flow modes Automatic engine idle & automatic engine shutdown Automatic two-speed travel Travel cruise control Stick Steer travel mode (Cat exclusive) Sealed, pressurised cab — standard (no canopy option) Improved air conditioning system (R134a, 1.0 kg) Adjustable wrist rests Suspension seat ROPS (ISO 12117-2:2008) certified Top Guard ISO 10262:1998 Level I Long undercarriage — 126″ length, 97.2″ track width Steel tracks — standard (17.7″ shoe) Steel tracks with rubber pads option ( 728 lb) ★ Standard counterweight option ( 551 lb) ★ Extra counterweight option ( 1,103 lb) — unique to 310 Dozer blade — 97.2″ standard width Wide dozer blade option — 103.9″ Machine swing speed: 10.6 rpm ★ 205.2″ dig depth — deepest in Cat mini range ★ 303″ maximum reach — greatest in Cat mini range ★ 17,459 lbf bucket force — highest in Cat mini range 38-gallon fuel tank Customisable operator performance settings Next Generation LCD monitor (standard) Advanced touchscreen monitor (optional) ISO or SAE control pattern — switchable Courtesy work lights Fluorescent retractable seat belt Ground-level side-door service access VisionLink® telematics ready 96% recyclability rating ★ 17,459 lbf Bucket ★ 205.2″ Dig Depth ★ 303″ Max Reach C3.3B · 69.5 HP Tier 4 Final / EU Stage V ROPS ISO 12117-2:2008 Top Guard ISO 10262 Lvl I Dual Counterweight Options 103.9″ Wide Blade Option 96% Recyclable Note: The 310 spec page publishes a single stick configuration (98.4″ stick). Minimum weight configuration is stated as long stick, steel tracks, no counterweight — the 98.4″ stick is the standard/only published configuration. No TOPS (ISO 12117:1997) certification is listed for the 310. No boom swing degrees are published on the official spec page. Full Specifications by Category Engine Engine Model Cat C3.3B Turbo Net Power @ 2,200 rpm (ISO 9249:2007 / 80/1269/EEC) 69.5 hp Gross Power (SAE J1995:2014) 74.3 hp Bore × Stroke 3.7″ × 4.7″ Displacement 203 in³ Emissions Standard U.S. EPA Tier 4 Final & EU Stage V Hydraulic System System Type Load-Sensing, Variable Displacement Piston Pump Pump Flow @ 2,400 rpm 62 gpm Operating Pressure — Equipment 4,134 psi Operating Pressure — Travel 4,134 psi Operating Pressure — Swing 3,336 psi Auxiliary Circuit Primary — Max Flow / Pressure 35 gpm / 4,134 psi Auxiliary Circuit Secondary — Max Flow / Pressure 9 gpm / 4,134 psi ★ Bucket Digging Force 17,459 lbf — highest in Cat mini range ★ Stick Digging Force 11,060 lbf Travel System Travel Speed — High 2.9 mph Travel Speed — Low 1.6 mph Max Traction Force — High Speed 6,497 lbf Max Traction Force — Low Speed 19,064 lbf Ground Pressure — Minimum Weight 5.4 psi Ground Pressure — Maximum Weight 5.9 psi Max Gradeability 30° Track Belt / Shoe Width 17.7″ Track Width 97.2″ Undercarriage Length 126.0″ Swing System Machine Swing Speed 10.6 rpm Boom Swing Not published on official spec page Dozer Blade Blade Width — Standard 97.2″ Blade Width — Wide Option 103.9″ Blade Height 17.0″ Max Blade Height (above grade) 16.6″ Max Blade Depth (below grade) 18.8″ Operator Environment & Safety Cab Type Sealed & pressurised — standard (no canopy option) ROPS Certification ISO 12117-2:2008 TOPS Certification Not listed for 310 Top Guard Level ISO 10262:1998 Level I Operator Sound Pressure (ISO 6396:2008) 72 dB(A) Exterior Sound Power (ISO 6395:2008) 99 dB(A) EU Noise Directive 2000/14/EC A/C Refrigerant R134a (GWP 1,430) Refrigerant Charge 1.0 kg CO₂ Equivalent 1.430 metric tonnes Adjustable Wrist Rests Included Suspension Seat Included Stick Steer Mode Included (Cat exclusive) Travel Cruise Control Included Customisable Operator Settings Included Next Generation LCD Monitor Standard Advanced Touchscreen Monitor Optional upgrade Courtesy Work Lights Included Fluorescent Retractable Seat Belt Included Service Refill Capacities Cooling System 2.6 gal (US) Engine Oil 3.0 gal (US) Fuel Tank 38.0 gal (US) Hydraulic Tank 14.0 gal (US) Hydraulic System Total 37.0 gal (US) Sustainability Recyclability Rating 96% EU Directive Compliance 2000/14/EC Dimensions & Reach Standard/Long Stick — 98.4″  |  Single published configuration ★ Dig Depth 205.2″ — deepest in Cat mini range Vertical Wall Depth 172.6″ ★ Max Reach — Ground Level 298.0″ ★ Maximum Reach 303.0″ — greatest in Cat mini range Max Dig Height 313.8″ Max Dump Clearance 229.5″ Boom in Reach 83.3″ Tail Swing (no c/wt) 70.9″ Tail Swing (standard c/wt) 76.1″ Max Blade Height (above grade) 16.6″ Max Blade Depth (below grade) 18.8″ Transport Height (no tools) 100.4″ Boom Working Height (with tools) 106.3″ Cab Height 100″ O/A Shipping Length (no c/wt) 269.7″ O/A Shipping Length (with c/wt) 274.9″ Undercarriage Length 126.0″ Track Width 97.2″ Track Shoe Width 17.7″ Swing Bearing Height 28.9″ Ground Clearance — Frame 14.0″ Stick Length 98.4″ Only one stick configuration published. Minimum weight note states long stick as baseline — the 98.4″ stick is the standard published configuration. Shipping length varies with counterweight fitment. Boom Working Height = stick pinned in working position with attachments. Operating Weights Cab Configuration (only option) Minimum Operating Weight (cab)* 21,170 lb Maximum Operating Weight (cab)** 23,002 lb Weight Add-Ons from Minimum Configuration Standard Counterweight 551 lb Steel Tracks with Rubber Pads (vs plain steel) 728 lb ★ Extra Counterweight (unique to 310) 1,103 lb * Minimum: steel tracks (no pads), no counterweight, operator, full fuel, long stick, blade, no bucket. ** Maximum: steel tracks with rubber pads, counterweight, operator, full fuel, long stick, blade, no bucket. Note: Extra counterweight ( 1,103 lb) not included in published maximum weight figure — consult Cat dealer for fully ballasted configuration details. Standard & Optional Equipment Feature / Item Standard Optional Engine Cat C3.3B Turbo — Tier 4 Final / EU Stage V ● — Automatic Engine Idle ● — Automatic Engine Shutdown ● — Automatic Two-Speed Travel ● — Variable Displacement Piston Pump — 62 gpm ● — Load Sensing / Flow Sharing Hydraulics ● — Hydraulics Auxiliary Primary Circuit — 35 gpm @ 4,134 psi ● — Auxiliary Secondary Circuit — 9 gpm @ 4,134 psi ● — One-Way, Two-Way & Continuous Auxiliary Flow ● — Auxiliary Line Quick Disconnects ● — Automatic Swing Brake ● — Operator Environment Sealed Pressurised Cab with Improved A/C (standard — no canopy) ● — ROPS / Top Guard Level I ● — Stick Steer Mode ● — Travel Cruise Control ● — Customisable Operator Performance Settings ● — Next Generation LCD Monitor ● — Advanced Touchscreen Monitor — ○ Adjustable Wrist Rests ● — Suspension Seat ● — Control Pattern Changer (ISO/SAE) — ○ Courtesy Work Lights ● — Fluorescent Retractable Seat Belt ● — Undercarriage & Blade Steel Tracks — 17.7″ shoe (standard) ● — Steel Tracks with Rubber Pads — ○ Standard Dozer Blade — 97.2″ wide ● — Wide Dozer Blade — 103.9″ — ○ Standard Counterweight — ○ Extra Counterweight ( 1,103 lb — unique to 310) — ○ Telematics & Connectivity VisionLink® Fleet Management Ready ● — Cat Product Link (cellular/satellite) — ○ ● Standard  ○ Optional   Standard and optional equipment may vary by region. Consult your Cat dealer for details.
