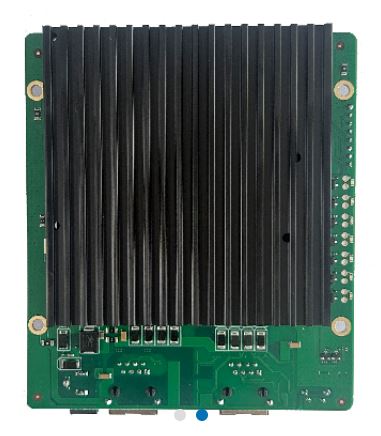

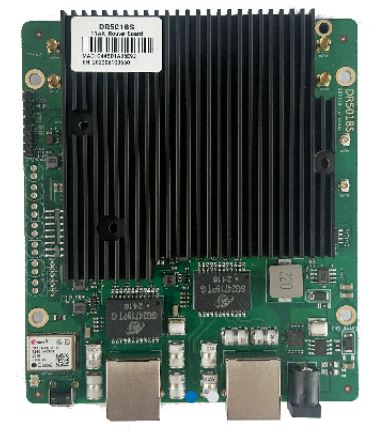

DR 5018 S 802.11AX 2×2 MU-MIMO OFMDA Tri Band Concurrent EMBEDDED BOARD, Qualcomm IPQ 5018, WiFi 6, Wallys,

Samples are available now! Product Description             DR5018S, based on the IPQ5018 chipset, is an enterprise-grade wireless module that integrates a BT5.1 radio module, along with 2×2 2.4GHz, 2×2 5GHz, and 2×2 6GHz high-power radio modules. It is specifically designed to provide users with mobile access to high-bandwidth video streaming, voice communication, and data transmission, making it ideal for office environments as well as challenging RF conditions in factories and warehouses. Features     Dual-core ARM 64 bit [email protected] 512MB DDRL3L System Memory 8MB NOR Flash, 256MB NAND Flash Support BT5.1(optional) 2×2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate 2×2 On-board 5GHz radio,up to 2402Mbps physical Data Rate 2×2 On-board 6GHz radio,up to 2402Mbps physical Data Rate Support GPS(optional) Support Openwifi Applications    802.11ax MU- MIMO OFDMA Access Point Mesh router supporting Easy Mesh Hotel Wireless Smart AP TWT            Absolute Maximum Rating               Parameter Rating Unit Supply Voltage 12V-48V(DC Jack) V Operating Temperature Range -40 70 ºC Storage Temperature Range -45 to 105 ºC            Operating Humidity Range 5 ~95 (non-condensing) % Storage Humidity Range 0 ~ 90 (non-condensing            %  Hardware Specifications   Symbol Parameter CPU Qualcomm-Atheros IPQ5018 CPU Frequency Dual-core ARM 64 bit A53 @1.0 GHz processor System Memory 512MB DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Port,1×2.5Gbps Ethernet Port USB 1x USB2.0 Interface SGMII 1x SGMII Interface UART 1x UART Interface Wireless 2×2 On-board 2.4GHz radio,up to 573Mbps physical Data Rate   2×2 On-board 5GHz radio,up to 2402Mbps physical Data Rate   2×2 On-board 6GHz radio,up to 2402Mbps physical Data Rate Channel Spectrum Widths for WLAN Support 20/40MHz at 2.4GHz Support 20/40/80/160MHz at 5GHz Support 20/40/80/160MHz at 6GHz Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Power 1)DC Jack: 12V-52V DC power supply 2）POE:Active POE，802.3at/BT,48V passive POE Nor Flash 8 MB Nand Flash 128 MB DDR 512MB Dimension      Product Version P/N Radio Frequency 1 DR5018S-5G 5Ghz 1G Ethernet & POE 2 DR5018S 2.4Ghz 5Ghz 6Ghz 2.5G 1G Ethernet & POE 3 DR5018-DB 2.4Ghz 5Ghz 1G Ethernet & POE Interface MAP
