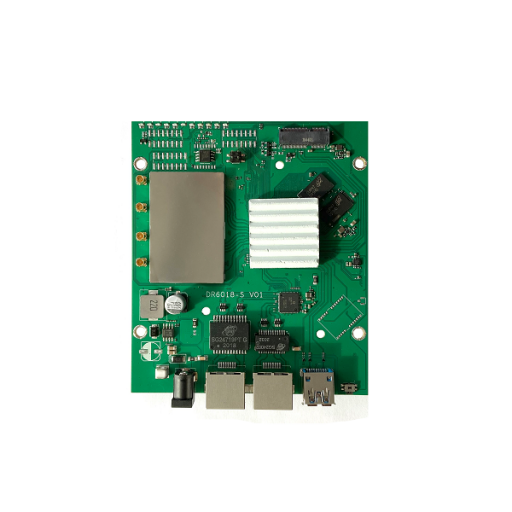

DR 6018-S 802.11AX MU-MIMO OFDMA DUAL CONCURENT BAND Multifunction EMBEDDED BOARD, Qualcomm IPQ 6010, WiFi

Samples are available now!  11AX MU-MIMO OFDMA DUAL BAND DUAL CONCURRENT EMBEDDED BOARD Features  Quad-core ARM 64bit [email protected] Processor  1GB DDRL3L System Memory  8MB NOR Flash, 256MB NAND Flash  Supports Dynamic Frequency Selection (DFS)  2x2On-board2.4GHz radio,upto 573Mbps physical Data Rate  2x2On-board 5GHz radio,upto 1201Mbps physical Data Rate Support: QCN9074 WiFi 6E Card in M.2 slot (can not support LTE 5G modules) Product Description DR6018-S based on IPQ6010 chipset is an enterprise wireless module integrated with 2×2 5G high power Radio module and 2×2 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment. Active POE Suport 802.3bt, DC jack 24-48V. If you need passive POE support , then please order DR6018-S LV version. Compact “DR6018-S” router board that runs Linux on a Qualcomm IPQ6010 with 802.11ax (Wi-Fi 6) and an M.2 slot plus dual GbE ports, including one with active or passive PoE, and optional micro-SD, GPS, and USB 3.0. This board has followed up on its 5-port DR6018 v3 router board with a smaller DR-6018-S board with the same Qualcomm-Atheros IPQ6010 SoC with 802.11a/n/ac/ax (Wi-Fi 6), but with only 2x GbE ports. The 125 x 105 x 20mm DR-6018-S features 802.3bt-compliant, active and passive, 24-48V Power-over-Ethernet on one of the ports. By comparison, the DR6018 v3 offers a single passive PoE port along with 3x standard GbE and a 2.5GbE port. The up to 1.8GHz, quad-core, Cortex-A53 IPQ6010, which has also appeared on 8devices’ Mango module and DVK, features built-in support for dual-band MU-MIMO, 2.4GHz/5GHz 802.11ax. Wi-Fi 6 is faster than 802.11ac (Wi-Fi 5) and supports concurrency for simultaneous WiFi connections to multiple devices. Wally’s does not list the OS, but has previously informed us its Qualcomm boards run Linux. Although not listed in the specs, the detail view suggests you can optionally choose to remove the 2.4GHz radio and use only the 5GHz connection. In addition to the built-in 802.11ax, there is an M.2 E-key slot for adding a Qualcomm QCN9074 802.11ax module. Four x U.FL antenna connectors are included along with a Bluetooth 4.2 radio and optional GPS. The DR6018-S ships with 256MB to 1GB DDR3L RAM via dual sockets plus 8MB NOR and 256MB NAND flash. A micro-SD and USB 3.0 port are optional. An FFC/FPC connector provides an LCD display output and there is a 12-pin serial interface. In addition to the PoE port, a DC jack operates at the same 24-48V range. The board has a -40 to 70°C operating range with 5-95% non-condensing humidity resistance. The DR6018-S supports an EasyMeshHotel Wireless application. Applications  802.11ax MU-MIMO OFDMA Access Point  MeshroutersupportingEasyMeshHotel Wireless application  Smart AP TWT       Absolute Maximum Rating       Parameter Rating Unit Supply Voltage 24V~48V(DC Jack) V Operating Temperature Range -40 to 70 ºC Storage Temperature Range -45 to 105 ºC Operating Humidity Range 5 to 95 (non-condensing) %        Hardware Specifications       Symbol Parameter CPU Qualcomm-Atheros IPQ6010 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module) SD Card Slot 1x SD Card Slot(Option) USB /header 1x USB 3.0 Port(Option) POE HV version  : Active POE(Suport 802.3bt) / LV Version : 24V~48V passive POE DC Jack 24V~48V power supply LED header FFC/FPC Connector Serial Port 1x Serial Port 12 Pin Connector Wireless On-board 2×2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2×2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors Bluetooth CSR8811 BLE 4.2 Nor Flash 8MB Nand Flash 256MB DDR 256MB~512MB Dimension 125mm x 105mm x 20mm   Radio TX Specifications(5180MHz-5825MHz)   Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 5Ghz 802.11ax HE20 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE400 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE80 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB        Radio TX Specifications(2412MHz-2482MHz)   Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 2.4Ghz 802.11ax HE20 MCS0 23dbm 26dbm ±2dB MCS1 23dBm 26dBm ±2dB MCS2 23dBm 26dBm ±2dB MCS3 23dBm 26dBm ±2dB MCS4 23dBm 26dBm ±2dB MCS5 23dBm 26dBm ±2dB MCS6 23dBm 26dBm ±2dB MCS7 22dBm 25dBm ±2dB MCS8 21dBm 24dBm ±2dB MCS9 21dBm 24dBm ±2dB MCS10 18dBm 21dBm ±2dB MCS11 17dbm 20dbm ±2dB 2.4Ghz 802.11ax HE40 MCS0 23dbm 26dbm ±2dB MCS1 23dBm 26dBm ±2dB MCS2 23dBm 26dBm ±2dB MCS3 23dBm 26dBm ±2dB MCS4 23dBm 26dBm ±2dB MCS5 23dBm 26dBm ±2dB MCS6 23dBm 26dBm ±2dB MCS7 22dBm 25dBm ±2dB MCS8 21dBm 24dBm ±2dB MCS9 21dBm 24dBm ±2dB MCS10 21dBm 24dBm ±2dB MCS11 19dbm 22dbm ±2dB   GPIO Pin Mapping   GPIO Pin Mapping Pin Signal Pin Signal GPIO_0 AUDIO_MUTE_BUT GPIO_1 QPIC_BUSY_N GPIO_2 MIC_VOL_M GPIO_3 QPIC_WE_N GPIO_4 QPIC_RE_N GPIO_5 QPIC_DAT4 GPIO_6 QPIC_DAT5 GPIO_7 QPIC_DAT6 GPIO_8 QPIC_DAT7 GPIO_9 WPS GPIO_10 QPIC_CLE_N GPIO_11 QPIC_NAND_CE_N GPIO_12 QPIC_DAT1 GPIO_13 QPIC_DAT2 GPIO_14 QPIC_DAT3 GPIO_15 QPIC_DAT0 GPIO_16 MIC_KPD_PWR_N GPIO_17 QPIC_ALE GPIO_18 KYPD_HOME_N GPIO_19 GND GPIO_20 Boot_Config(PULL_DOWN) GPIO_21 MUTE_ON GPIO_22 ADC_RST GPIO_23 WSA_SWR_CLK GPIO_24 WSA_SWR_DATA GPIO_25 PWM_LED_RST GPIO_26 Boot_Config(PULL_DOWN) GPIO_27 WSA_EN_R GPIO_28 WSA_EN_L GPIO_29 PDM_CLK0 GPIO_30 PDM_DATA0 GPIO_31 PDM_CLK1 GPIO_32 PDM_DATA1 GPIO_33 EXT_MCLK2_ADC GPIO_34 MIC_VOL_P GPIO_35 LED_5G GPIO_36 PCIE0_WAKE GPIO_37 LED_2GS GPIO_38 SPI0_CLK GPIO_39 SPI0_CS_NI GPIO_40 SPI0_MISO GPIO_41 SPI0_MOSI GPIO_42 BLSP2_SCL GPIO_43 BLSP2_SDA GPIO_44 BLSP2_UART_RX GPIO_45 BLSP2_UART_TX GPIO_46 BLSP5_SCL GPIO_47 BLSP5_SDA GPIO_48 NC GPIO_49 Boot_Config(PULL_DOWN) GPIO_50 LED_USB0 GPIO_51 BT_PRIORITY_PTA11 GPIO_52 WLA_ACTI_PTA12 GPIO_53 BT_ACT_PTA10 GPIO_54 Boot_Config(PULL_DOWN) GPIO_55 NC GPIO_56 NC GPIO_57 NC GPIO_58 NC GPIO_59 PCIE0_CLK_REQ GPIO_60 PCIE0_RSTn GPIO_61 NC GPIO_62 SD_DET GPIO_63 SD_WP GPIO_64 MDC GPIO_65 MDIO GPIO_66 SD_LDO_EN GPIO_67 NC GPIO_68 NC GPIO_69 SPI_CLK_UART_RTSn GPIO_70 SPI_CS_UART_CTSn GPIO_71 SPI_MISO_UART_RX GPIO_72 SPI_MOSI_UART_TX GPIO_73 USB_OTG GPIO_74 NC GPIO_75 Malibu_RESET GPIO_76 NAPA_INT0 GPIO_77 NAPA_RESET GPIO_78 QTZ_INT GPIO_79 QTZ_RESET   Boot Config Switch   Boot_Config Switch1(S7) Boot_Config Boot up Interface Select S7A S7B S7C 0 0 0 SPI NOR. (Default) 0 0 1 eMMC 0 1 0 QPIC, Parallel NAND 0 1 1 USB3.0 1 0 0 SPI-NOR-GPT S7D Boot up Interface Select 0 Boot from code ram.(Default) 1 Boot from ROM Boot_Config Switch2(S9) Boot_Config Boot up Interface Select 0 No auth.(Default) 1 Auth is required   Interface MAP
